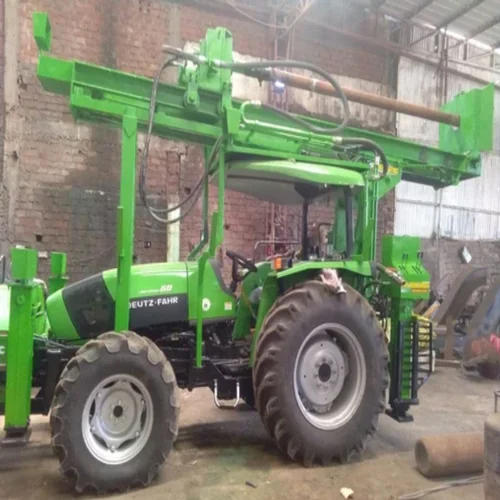

Tractor Mounted Drilling Rig

Get a Price/Quote

MOQ : 1 Unit

Tractor Mounted Drilling Rig Specification

Features
Easy mobility, robust structure, quick setup, hydraulic feed system

Noise Level
85 dB (approximate)

Usage & Applications
Water wells, soil investigation, irrigation wells

Shape
Rectangular, trailer-mounted profile

Tool Type
Rotary drilling rig attachment

Product Type
Drilling Equipment

General Use
Water well drilling, soil sampling, geotechnical investigation, and agricultural applications

Capacity
Up to 200 meters depth (depending on soil type and drill rod length)

Weight (kg)
3500 kg (approximate)

Type
Tractor Mounted Drilling Rig

Drive Type
PTO driven (Power Take-Off)

Power
45-65 HP (tractor power requirement)

Power Source
Tractor engine

Transmission Type
Hydraulic and mechanical

Engine Type
Compatible with diesel-powered tractors

Fuel Tank Capacity
As per tractor specification

Engine Oil Capacity
As per tractor specification

Start Method
Electric start (tractor-based)

Machine Speed
Variable; depends on drilling operation

Production Output
5-8 boreholes per day (subject to soil conditions)

Material
Heavy-duty mild steel

Dimension (L*W*H)
5600 mm x 2300 mm x 2800 mm (approximate)

Color
Blue or customized

Stabilizers
Hydraulic operated, 4 nos.

Operating Crew
2-3 persons

Mounting
Single axle trailer mounted on tractor

Hydraulic Oil Tank Capacity
100 liters (approximate)

Rotation Speed
0-100 rpm (hydraulically controlled)

Mud Pump
Included, capacity up to 150 LPM (liters per minute)

Drilling Method
Rotary mud circulation

Max Pull Up Force
3500 KgF

Water Injection System
High pressure, included

Control Panel
Centralized hydraulic control panel

Clamping Device
Hydraulic rod clamp

Transport Mode
Towable by any standard tractor

Drilling Rod Diameter
Up to 114 mm

Drill Head Type
Hydraulic rotary head

Operating Temperature Range
-10C to 50C

Tractor Mounted Drilling Rig Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
2-10 Days

About Tractor Mounted Drilling Rig

Order the ravishing Tractor Mounted Drilling Rig, engineered with crackerjack precision for water well drilling, soil sampling, and geotechnical investigation across India. Unlock supreme productivity with a hydraulically controlled rotary head, exquisite mud pump capacity of up to 150 LPM, and robust pull-up force of 3500 KgF. Experience quick setup, competitive pricing, and easy mobility with a heavy-duty mild steel body. The rig boasts hydraulic stabilizers, efficient rod clamp, centralized control panel, and is PTO driven for reliability. Perfect for agricultural applications, this rig ensures longevity and seamless operation.

Features, Applications, and Media: Tractor Mounted Drilling Rig

This exquisite rig features heavy-duty construction, hydraulic feed, four robust stabilizers, and an advanced rotary mud circulation system. Its centralized control panel and variable speed offer seamless operation. Ideal for use in water well drilling, soil investigation, irrigation wells, and geotechnical surveys, it performs great with water-based media. Its single-axle, trailer-mounted design allows for easy transport to sites ranging from agricultural lands to construction projects and remote rural environments.

Supply Ability, FOB Port & Domestic Market Reach

We ensure timely handover and streamlined exchange with a supply ability supporting multiple rigs each month. The outlay for each drilling rig remains highly competitive given its exquisite build and high productivity. Our main FOB port is located in India, and we extend services across the domestic market, covering agricultural, geotechnical, and infrastructural demands nationwide. Count on us for fast delivery, responsive support, and reliable solutions tailored for India's diverse drilling environments.

FAQ's of Tractor Mounted Drilling Rig:

Q: How does the Tractor Mounted Drilling Rig operate in various soil conditions?

A: The rig's hydraulic rotary head and adjustable drilling parameters enable efficient operation in a wide range of soil types, from loose sediments to harder strata, ensuring reliable borehole formation up to 200 meters depth.

Q: What is the typical usage process for water well drilling with this machine?

A: After transportation and setup using tractor PTO, operators position the rig, stabilize with hydraulic supports, use the centralized control panel to start rotary mud drilling, and apply the integrated mud pump for smooth drilling progress.

Q: Where can this drilling rig be effectively deployed?

A: It is suitable for diverse locations such as agricultural fields, construction sites, geotechnical investigation zones, and remote rural areas, thanks to its trailer-mounted, towable design and robust structure.

Q: When is the optimal time to use this drilling rig for water well or soil sampling projects?

A: The rig can be operated year-round within an ambient temperature range of -10C to 50C, making it highly versatile for use during different seasons or climate conditions across the nation.

Q: What are the benefits of the hydraulic rod clamp and centralized control system?

A: The hydraulic rod clamp ensures safe and secure handling of drill rods, reducing manual effort, while the centralized control panel allows efficient management of all drilling parameters from a single location, enhancing operator safety and productivity.

Q: How does competitive pricing impact the acquisition outlay for this rig?

A: Our competitive pricing policies lower the initial investment outlay, making high-performance drilling solutions accessible to a broader range of users without compromising on quality or reliability.
