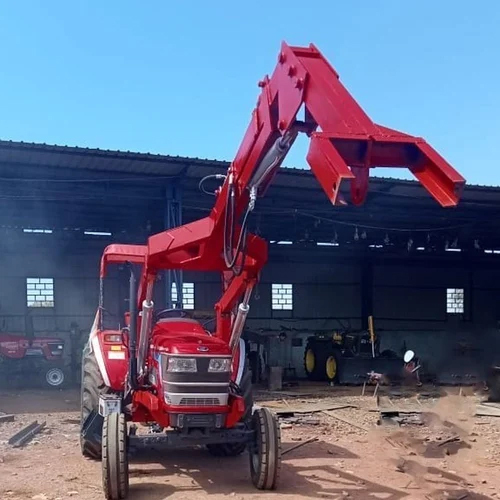

Tractor Pole Erection Machine

Get a Price/Quote

MOQ : 1 Unit

Tractor Pole Erection Machine Specification

Usage & Applications
Applicable for electricity pole, telecom pole and similar vertical post erection

Tool Type
Pole Lifting and Erection Tool

Shape
Rectangular chassis with articulated boom and clamp

Features
Easy to attach and detach, robust build, low maintenance, adjustable lifting arm, hydraulic controls

Noise Level
Depends on tractor, generally 75-85 dB

Product Type
Pole Erection Machine

General Use
Erecting and installing electric poles or similar vertical posts

Capacity
Capable of lifting poles up to 12 meters in height and 300 kg in weight

Weight (kg)
1200 kg (approximate, varies by model)

Type
Tractor Mounted Hydraulic Pole Erection Machine

Drive Type
Hydraulic

Power
Suitable for 40 HP Tractor and above

Power Source
Tractor PTO/Engine Driven

Transmission Type
Hydraulic Assisted

Engine Type
Uses tractors inbuilt engine

Fuel Tank Capacity
As per attached tractor; machine itself does not require separate fuel tank

Engine Oil Capacity
Utilizes tractors engine oil; no separate reservoir

Start Method
Operates with tractor ignition

Machine Speed
Adjustable by tractor throttle; hydraulic operation enables smooth, controlled lifting

Production Output
Approx. 12-20 poles per day (depending on site conditions)

Material
Heavy-duty steel structure

Dimension (L*W*H)
4000 mm x 1750 mm x 1200 mm (approximate)

Color
Blue/Yellow/As per requirement

Painting
Powder coated or shot blasted rust-resistant finish

Hydraulic Lifting Capacity
Up to 3 tons (with compatible tractor)

Control System
Manual lever-operated hydraulic controls

Safety Features
Overload relief valve; anti-slip platform for operator safety

Compliance
Meets most state electricity board and telecom civil department standards

Jacking System
Hydraulic stabilizer legs for improved stability during erection

Accessory Options
Available with optional pole clamp attachments for varying diameter poles

Mounting
Three-point linkage mounting system for standard tractors

Travel Speed
Depends on tractor, no impact on mounted unit

Operating Height
Up to 22 feet (approx. 6.7 meters)

Tractor Pole Erection Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
2-10 Days

About Tractor Pole Erection Machine

A tractor pole erection machine is a versatile tractor attachment that uses a hydraulic crane and auger system to dig holes and install utility poles, fences, and other posts for electrification, construction, and agricultural projects. By combining a tractor's power and mobility with a hydraulic lifting arm and a post hole digger, these machines automate the tasks of material handling, hole digging, and pole placement, significantly reducing labor costs and project times compared to manual methods.

Key Functions and Applications

Pole Installation:

The primary function is to dig holes and then lift and precisely place concrete, wooden, or other types of poles for various applications.
Material Handling:

The crane function allows for loading, unloading, and shifting heavy materials such as wire drums, transformers, and other equipment.
Other Uses:

The machine can also be used for tree planting, fencing, and drilling for solar panel rack foundations.

Features and Benefits

Tractor-Mounted:

Designed to be mounted on a tractor, providing mobility and power to the integrated crane and auger.
Hydraulic System:

Utilizes hydraulics for powerful and smooth operation of the lifting arm and the post hole digger.
Reduced Labor:

Dramatically decreases the number of manual laborers required for a job, from potentially a dozen or more to just a few operators.
Increased Efficiency:

Significantly speeds up the entire pole erection cycle, allowing for more poles to be installed per day and ensuring timely project completion.
Cost Savings:

High speed and reduced labor requirements lead to substantial cost savings for construction and utility projects.
Versatility:

Can be used in various terrains and soil types, including loess, clay, and areas with pebbles or weathered rock.
Customization:

Often tailored to specific project requirements, with options for different drill diameters and lifting capacities.

Hydraulic Power and Versatile Mounting

The machine features a hydraulic system powered by your tractor's PTO or engine, providing smooth and controlled lifting for poles up to 12 meters in height. Equipped with a three-point linkage mounting system, it attaches securely to standard agricultural tractors, enabling quick installation and removal as required. Its hydraulic-assisted jack and lever controls enhance usability and safety.

Stability, Safety, and Reliability

Designed for demanding field conditions, the pole erection machine employs hydraulic stabilizer legs that ensure optimal stability during operations. Important safety measures include an overload relief valve and an anti-slip operator platform, reducing operational risks. The unit's rugged steel frame, corrosion-resistant coating, and robust design guarantee long-lasting reliability with minimal maintenance costs.

FAQ's of Tractor Pole Erection Machine:

Q: How does the tractor pole erection machine operate?

A: The machine operates using the tractor's engine and hydraulic system, controlled via manual levers. The operator mounts the unit to the tractor's three-point linkage, engages the hydraulic controls, and utilizes the stabilizer legs for secure positioning before lifting and erecting poles.

Q: What types of poles can be erected with this machine?

A: It is suitable for electric, telecom, and similar vertical posts, handling poles up to 12 meters in length and 300 kg in weight. With optional pole clamp attachments, it can accommodate varying pole diameters effectively.

Q: When should the optional pole clamp attachments be used?

A: Optional pole clamp attachments are recommended when working with poles of non-standard or variable diameters to ensure a secure grip during lifting and alignment.

Q: Where can this machine be utilized?

A: This machine can be used in various field environments where electric or telecom poles need to be erected, meeting most state electricity board and telecom civil department standards in India.

Q: What is the process for erecting a pole using this machine?

A: Attach the machine to a compatible tractor, position it at the erecting site using the tractor's mobility, stabilize the unit with hydraulic legs, and use the manual lever-operated hydraulic control to lift and position the pole vertically.

Q: What benefits does this machine offer compared to manual pole erection?

A: This hydraulic pole erection machine significantly enhances productivity, handling 12-20 poles per day. It reduces manual labor, improves operator safety, and ensures precise, stable placement of heavy poles with minimal effort.
