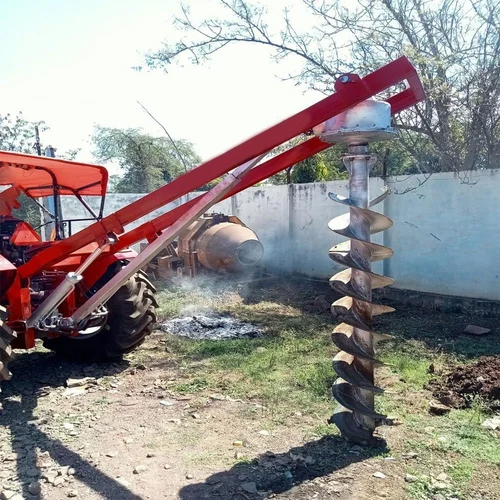

Tractor Post Hole Digger

Get a Price/Quote

MOQ : 1 Unit

Tractor Post Hole Digger Specification

Features
Heavy-duty structure, Replaceable auger, Easy mounting/dismounting, Efficient transmission

Noise Level
Depends on tractor used

Tool Type
Earth Auger Attachment

Shape
Cylindrical auger attachment

Usage & Applications
Plantation, fencing, construction post holes, orchard, solar panel mounting posts

Product Type
Post Hole Digger Attachment

General Use
Drilling post holes in agricultural and construction fields

Capacity
Able to drill holes up to 36 inch depth and 9-18 inch diameter (varies with auger)

Weight (kg)
Approx. 180-220

Type
Tractor Mounted Implement

Drive Type
PTO Driven (Power Take Off)

Power
40-60 HP required (tractor mounted)

Power Source
Tractor PTO shaft

Transmission Type
Gear Drive

Engine Type
Not applicable (uses tractor engine)

Start Method
Operated via tractor controls

Disc Diameter
Auger diameter 9 to 18 inches

Machine Speed
540 RPM (PTO Input)

Production Output
20-30 holes per hour (depending on soil)

Material
Alloy Steel/ Mild Steel (frame), High Carbon Steel (auger)

Dimension (L*W*H)
Approx. 2100 x 900 x 850 mm

Color
Yellow & Blue (as per image)

No. of Auger Blades
2 or 3 flights per auger

Safety
Shear pin protection on driveline

Suitable Tractor HP
35 HP and above

Mounting
3 Point Linkage (Category I/II)

Paint Type
Powder Coated Finish

Auger Length
Up to 1000 mm (customizable per requirement)

Working Depth
Up to 3 feet (standard)

Tractor Post Hole Digger Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
2-10 Days

About Tractor Post Hole Digger

A tractor post hole digger is a tractor-mounted implement used for efficiently digging holes of various widths and depths for purposes like fence installation, pole erection, and tree/sapling planting. The digger uses a rotating auger, driven by the tractor's Power Take-Off (PTO), to cut and scrape soil, with a gearbox providing power transmission and a heavy-duty frame ensuring durability. Key features include special cutting tips for tough soil, a stabilizer system for accuracy, and protection against overloads.

Components and Mechanism

Auger:

A spiral-shaped metal rod with blades or a cutting tip at the end that rotates to drill into the ground.
Gearbox:

A heavy-duty gearbox receives power from the PTO and drives the auger.
Power Transmission:

The tractor's PTO mechanically drives the auger through the gearbox and power shaft.
Heavy-Duty Frame:

A robust frame is used to mount the entire system to the tractor's 3-point linkage.
Stabilizer System:

This system keeps the auger perpendicular to the ground during operation and controls its swinging motion.

How it Works

The post hole digger is mounted to a tractor's 3-point linkage.
The tractor's PTO is engaged, providing mechanical power to the auger via the gearbox.
The rotating auger is lowered into the ground, its blades cutting and scraping the soil.
The excavated soil is typically placed around the hole.
The auger can be lifted to clear the soil and repositioned to continue digging until the desired depth is reached.

Key Features

PTO Driven: The power from the tractor's PTO drives the auger.
Heavy-Duty Gearbox & PTO Shaft: Provides durable power transmission and overload protection.
Specialized Cutting Tips: Made of special steel, these tips are designed to handle tough soil conditions.
Stabilizer System: Ensures the auger operates at a correct angle for precise hole creation.
Various Sizes: Available with augers of different diameters to create holes for specific applications.
Safety Features: Overload protection, such as a slip clutch or shear pin, is often included to prevent damage from obstructions.

Versatile Drilling for Multiple Applications

Ideal for agricultural plantations, fencing, construction sites, and solar panel installation, this post hole digger adapts to various project requirements. Its compatibility with different auger diameters and customizable length make it perfect for diverse soil conditions and hole specifications.

Rugged and Reliable Engineering

Built with an alloy/mild steel frame and high-carbon steel auger, the machine offers excellent strength and durability. The powder-coated finish enhances resistance to wear, promising reliability across demanding job sites and consistent long-term performance.

Effortless Operation and Safety

Designed for easy mounting and removal via a 3-point tractor linkage, the post hole digger integrates seamlessly with 35 HP and above tractors. A shear pin protects the PTO driveline, ensuring operational safety and reducing the risk of mechanical damage during use.

FAQ's of Tractor Post Hole Digger:

Q: How does the tractor post hole digger operate with different tractors?

A: The post hole digger is compatible with tractors of 35 HP and above that have a Category I or II 3-point linkage. It attaches easily to the PTO shaft, utilizing the tractor's power to drive the auger for efficient drilling.

Q: What types of holes can this digger create, and what are its drilling capacities?

A: This implement can drill holes up to 36 inches deep and diameters ranging from 9 to 18 inches, varying with the auger used. It effectively drills for fencing, plantation, orchard, and construction purposes.

Q: When should I consider using a post hole digger attachment for my project?

A: Use the post hole digger when you require precise and consistent holes for tasks such as planting, erecting fences, installing signposts, or constructing foundations, especially in large-scale or repetitive applications.

Q: Where is the ideal setting for using this post hole digger?

A: It is best suited for agricultural fields, construction sites, orchards, and areas requiring uniform post holes for infrastructure like fencing or solar panels, ensuring operational efficiency and uniform results.

Q: What is the process of mounting and operating the post hole digger?

A: The digger is mounted directly to your tractor's 3-point linkage. The auger is operated via the tractor's PTO controls and gear-driven transmission. Once attached, you can adjust the auger and begin hole drilling at the desired location.

Q: How does the shear pin protection enhance safety during operation?

A: The shear pin is designed to break if the auger encounters a heavy obstruction, immediately stopping the driveline. This mechanism protects both the implement and the tractor from potential mechanical damage.

Q: What are the main benefits of using this earth auger attachment?

A: Key benefits include robust construction, rapid and uniform hole production, customizable auger options, reliable safety features, and easy attachment/detachment, making it highly efficient and cost-effective for different post hole drilling tasks.
